제품 상세 정보:
|
| 폼 팩터: | 1U 랙 | 프로세서: | 최대 2개의 5세대 Intel® Xeon® 확장 가능 프로세서, 최대 64개 코어 및 350W TDP |
|---|---|---|---|
| 드라이브 베이: | "최대 4x 3.5"" 또는 12x 2.5"" 또는 16x EDSFF E1.S | 메모리: | 최대 32개의 TruDDR5 3DS/RDIMM 지원 |
| 확장 슬롯: | 최대 5개의 PCIe 4.0/5.0 슬롯, 1개의 OCP 3.0 슬롯, | GPU: | 단일 너비 GPU 최대 4개 또는 이중 너비 GPU 2개 |
| 강조하다: | ThinkSystem SR630 V3 rack server,2U rack server with Xeon,Intel Xeon Scalable rack server |
||
Tech Specs
| Form Factor | 1U rack |
| Processor | Up to 2x 5th Gen Intel® Xeon® Scalable processors, up to 64 cores and 350W TDP |

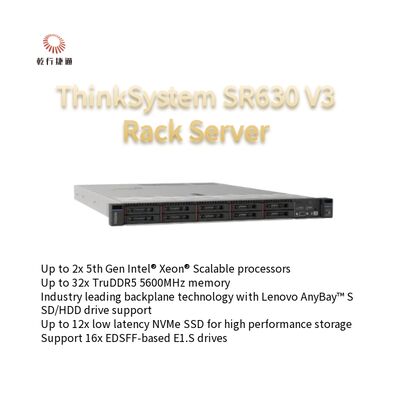

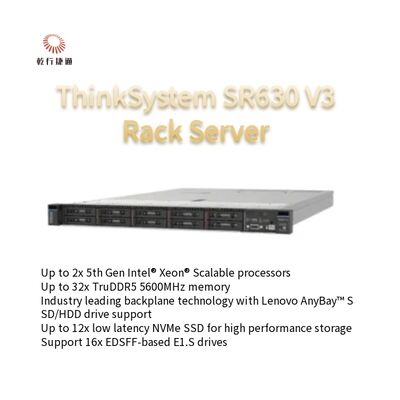

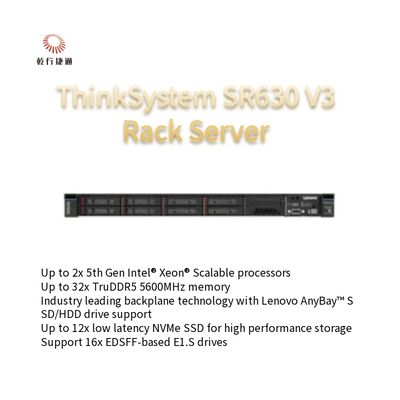

| Drive Bays | Up to 4x 3.5" or 12x 2.5" or 16x EDSFF E1.S drives Front: up to 4x 3.5 / 10x 2.5" /16x EDSFF E1.short hot swap drives Rear: 2x 2.5”; 7mm SATA/NVMe hot-swap boot drives, support RAID Internal 2x M.2 SATA/NVMe boot drives, support RAID Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10) |
| Memory | Supports up to 32x TruDDR5 3DS/RDIMMs |
| Expansion Slots | Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot |
| GPUs | Up to 4x single-width GPUs or 2x double-width GPUs |
| Network Interface | LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters |

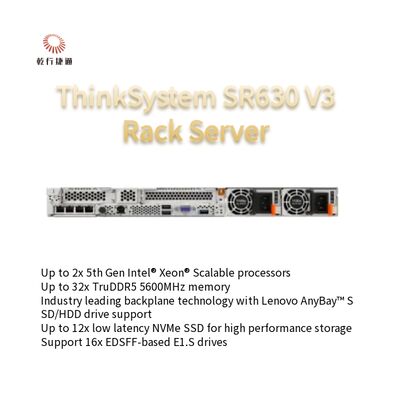

| Ports | Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional) Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional) |
| HBA/RAID Support | SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters. |
| Power | Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum |
| Systems Management | Lenovo XClarity Controller |
| OS Support | Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information. |
| Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades. |
Increased performance and reduced power consumption with a dash of wow.

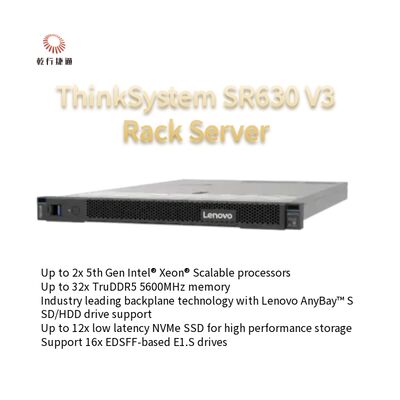

The dual processor ThinkSystem SR630 V3 server is a 1U server maximized for performance. With the 5th Gen Intel® Xeon® Scalable processors it provides better performance over the previous generation. When you factor in 32 DIMMs of DDR5 memory, PCIe Gen5 technology, and up to EDSFF E1.S drives thru direct NVMe, it offers the speed and density desired by cloud service providers and enterprises.
Lenovo innovation increases performance in the SR630 V3 while reducing power consumption by adding in optional Neptune™ liquid cooling.
Next-Gen Workloads Handled at the Flip of a Switch
Processing power is king when it comes to new applications and technology. Applications are evolving and requirements are changing creating next-gen workloads. Cloud Service providers and Enterprise applications require the ability to scale up and down easily to efficiently manage these workloads and their client’s needs. The SR630 V3 is designed with flexible storage, support for PCIe Gen5, intuitive data management, and security.
Easy Management and Enhanced Security in One Smart Server
The SR630 V3 includes Lenovo ThinkShield security software. ThinkShield prevents, detects and remediates against attacks, providing security in the supply chain, below the OS in the server, and from the OS to the cloud. The XClarity system manager simplifies infrastructure processes saving time during deployments, handling faults, and adding new servers to the network. It also adds security by monitoring log events and letting you choose from 3 security modes.
