제품 상세 정보:
|
| 폼 팩터 / 키: | 1U 랙 서버 | 프로세서: | 최대 2개의 3세대 Intel® Xeon® 확장 가능 프로세서 |
|---|---|---|---|
| 드라이브 베이: | 최대 4개의 3.5인치 + 2개의 2.5인치 드라이브를 수용할 수 있는 전면 및 후면 드라이브 베이 | 메모리: | 32x DDR4 메모리 슬롯; 32x 256GB 3DS RDIMM을 사용하면 최대 8TB |
| 확장 슬롯: | 최대 3개의 PCIe 4.0 슬롯, 1개의 OCP 3.0 슬롯 | GPU: | 최고 3x까지 단일 폭 75W 그포스 |
| 강조하다: | Lenovo Thinksystem SR630 V2 server,1U rack storage server,Lenovo SR630V2 rack server |
||
Built for Business, with Business-Critical Versatility
Confidently deploy performance-driven, industry-leading in reliability and security enhanced SR630 V2 for cloud, analytics, virtualization or gaming.
Tech Specs
| Form Factor/Height | 1U rack server |
| Processors | Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP |
| Drive Bays | Front and rear drive bays of up to 4x 3.5-inch + 2x 2.5-inch drives, or 12x 2.5-inch drives, or 16x EDSFF drives; Up to 12x NVMe drives supported; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1) |
| Memory | 32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ Persistent Memory 200 Series modules (PMem) |
| Expansion Slots | Up to 3x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot |
| GPUs | Up to 3x single-width 75W GPUs |
| Network Interface | LOM adapter installed in the OCP 3.0 slot; PCIe adapters |

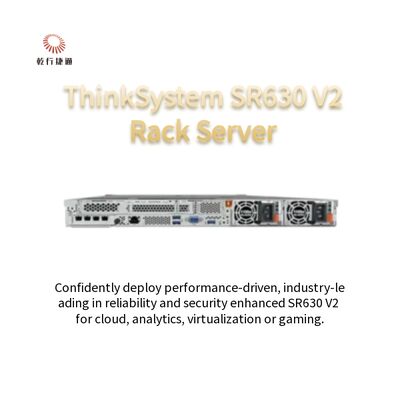

| Ports | Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional) |
| HBA/RAID Support | SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs |
| Power | Dual redundant power supplies (up to 1800W Platinum) |
| Systems Management | Lenovo XClarity Controller |
| OS Support | Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information. |
| Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades |
Future Defined Data Center
Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR630 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-Optimized Support
ThinkSystem SR630 V2 is tuned for Intel® Optane™ Persistent Memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.
Flexible Storage
Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, U.2 & U.3 NVMe PCIe drives, or EDSFF-based SSDs. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
