제품 상세 정보:
|
| 유형: | 고문 | 프로세서 유형: | 제온 |
|---|---|---|---|
| 원산지: | 중국 | 모델 번호: | CPU/8457C*2, 메모리/32g*8, 시스템 디스크/960g*2, 디스크/8t sata*3, 어레이 카드/9361-8i-2g, 전원 공급 장치/1600W*2/HIoo/80G |
| 모델: | NF5280M7 | 구조: | 2U |
| 프로세서: | 1/2 Intel 4/5 확장 가능 프로세서는 4.2GHz에서 64개 코어를 지원할 수 있습니다. | 칩셋: | 인텔 에미츠버그 |
| 강조하다: | NF5280M7 2U rack server,2-socket rack storage server,Intel Xeon Scalable server |
||

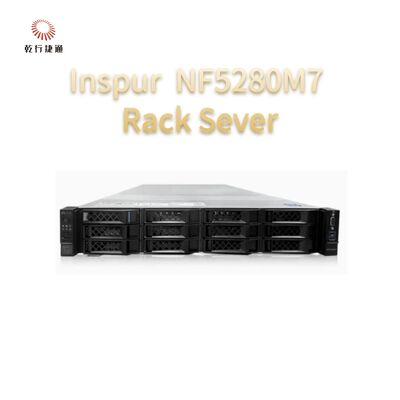

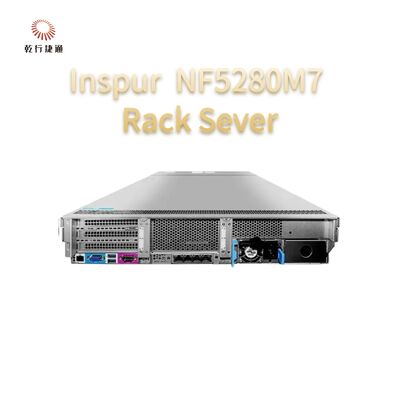

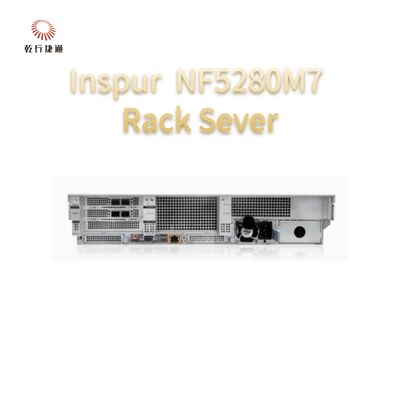

NF5280M7 is a high-end 2U 2-socket rack server configured with the 3rd Gen Intel® Xeon® Scalable Processors. For different application scenarios, NF5280M7 maintains the consistent high-quality and reliability of IEIT servers. The product meets the application configuration requirements of various industries with high computing performance, complete ecosystem compatibility, and flexible configuration, and is suitable for various application scenarios such as data analysis and processing, deep learning, distributed storage, etc.
Technical Specifications
| item | value |
| type | Rack |
| processor type | Xeon |
| place of origin | China |
| model number | CPU/8457C*2, memory /32g*8, system disk /960g*2, disk /8t sata*3, array card /9361-8i-2g, Power supply /1600W*2/HIoo/80G x 1 graphics card |
| Model | NF5280M7 |
| Structure | 2U |
| Processor | The 1/2 Intel 4/5 scalable processor can support 64 cores at 4.2GHz |
| Chipset | Intel Emmitsburg |
| Memory | 32g*8 |
| Disk | 8t sata*3 |
| Array card | 9361-8i-2g |
| Port | 10 |
| Dimensional | 482.4mm(W)*87mm(H)*828.4mm(D) ≤35kg |
| Operating temperature | 5°C-50°C |
Key Features
High Performance
NF5280M7 is configured with two 3rd Gen Intel® Xeon® Scalable processors, each CPU has up to 40 cores and 80 threads. The maximum TDP is 270W, maximum base frequency is 3.6GHz with 1.5MB L3 cache per core and 3 UPIs at up to 11.2GT/s.
NF5280M7 provides extraordinary speed, high availability and a maximum of 4T memory capacity with up to 32x DDR4-3200MT/s ECC RDIMMs or LRDIMMs.
NF5280M7 protects data integrity during power failure without degrading memory capacity and bandwidth by supporting Intel® Optane™ Persistent Memory at up to 512G capacity with 3200MHz bandwidth.
Supports up to 20x 3.5-inch or 39x 2.5-inch drives.
Supports OCP 3.0 (optional), provide 10/25/40/100/200G network interface and a more flexible network structure for applications.
Supports up to 11x PCIe slots for further I/O performance upgrades.
Supports rear 2x SATA M.2/E1.S (optional) to meet a variety of storage needs.
NF5280M7 adopts an easy maintenance design and the entire system supports tool-free maintenance. By optimizing structural components, it allows convenient assembly and reduces maintenance times.
Unique intelligent temperature control technology and advanced air-cooling system keeps the server working in under ideal conditions to ensure the stable operation of the system.
BMC supports the monitoring of system parameters and triggers alarm notifications for potential failures, allowing secure and stable machine operation, and reducing the risk of system shutdowns.
