제품 상세 정보:
|
| 폼 팩터: | 2U 랙 서버 | 로컬 스토리지: | "핫 스왑 가능 드라이브 구성: – 8개의 2.5인치 NVMe SSD – 16개의 2.5인치 NVMe SSD" |
|---|---|---|---|
| 피코이에 확장: | 최대 8개의 PCIe 슬롯, 모든 슬롯은 최대 5.0 x16의 PCIe를 지원합니다. | GPU 카드: | 2개의 이중 너비 또는 4개의 단일 너비 GPU 카드 |
| 팬 모듈: | N+1 이중화의 핫스왑 가능 역회전 팬 4개 | 파워서플라이: | 1+1 이중화의 2000W/2400W/2700W 플래티넘/티타늄 핫스왑 가능 PSU |

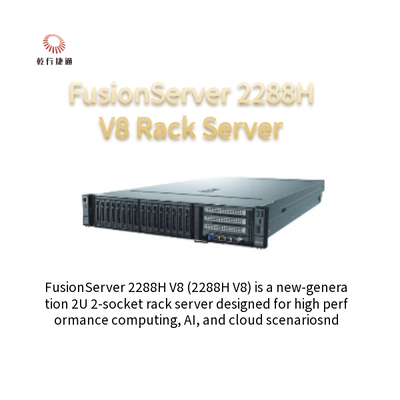

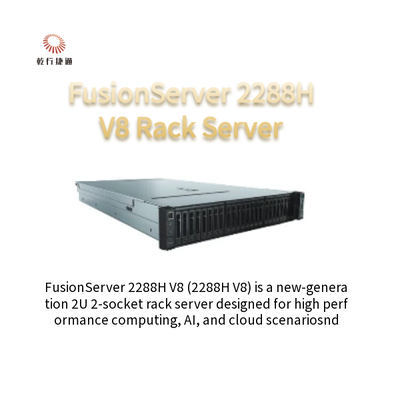

Fusion 2288H V8 2U Rack Server
Product Introduction
FusionServer 2288H V8 (2288H V8) is a new-generation 2U 2-socket rack server designed for high performance computing, AI, and cloud scenariosnd. The 2288H V8 features high performance, scalability and reliability, easy deployment, and simplified management.
Technical Specifications
| Parameter | Description |
| Form Factor | 2U rack server |
| Processor | 2 x Intel® Xeon®6 6900P series processors (code name GNR-AP) with TDP up to 500 W per processor |
| Memory | 24 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8800 MT/s |
| Local Storage | Hot-swappable drives configurations: – 8 x 2.5″ NVMe SSDs – 16 x 2.5″ NVMe SSDs |
| PCIe Expansion | Up to 8x PCIe slots, all slots support PCIe up to 5.0 x16 |
| GPU Card | 2 x dual-width or 4 x single-width GPU cards |
| Fan Module | 4 x hot-swappable counter-rotating fans in N+1 redundancy |
| PSU | 2000 W/2400 W/2700 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management | The BMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. – The BMC supports standard interfaces such as Redfish, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management – The BMC Web UI provides key component status indicators to help technical personnel quickly locate faulty components or components at risk of failure. This simplifies maintenance, speeds up troubleshooting, and improves system availability. – The onboard BMC Integrated Management Module (BMC) continuously monitors system parameters, triggers alarms, and takes recovery actions to minimize downtime. |
| OS | Red Hat Enterprise Linux and openEuler OS |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature | 5℃ to 35℃ (41℉ to 95℉), compliant with ASHRAE Classes A1/A2 |
| Certification | CE, CCC, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails |
| Dimensions (H x W x D) | Chassis with 2.5″ drives: 86.1 mm x 447 mm x 920 mm (3.39 in. x 17.60 in. x 36.22 in.) |
Intel® Xeon®6 6900P series processors(code name GNR-AP) with 500 W TDP per processor; 24 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8800 MT/s
PCIe 5.0 protocol and 8x standard PCIe slots ensure flexible configuration, allowing 100% higher PCIe bandwidth for high-speed interconnection
High-speed flash memory and diverse configurations:
(1) 8 x NVMe U.2 SSDs, high-speed flash for high performance;
(2) 16 x NVMe U.2 SSDs, high-speed flash for high performance;
Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger temperature adaptation, providing 50% better heat dissipation capability than a single heat sink
Unique AI memory fault self-healing ensures stable system running and reduces system downtime by 66%
RoT-based secure boot ensures security everywhere
Dynamic energy management technology and intelligent service awareness: The CPU working frequency is dynamically adjusted based on the actual service load
