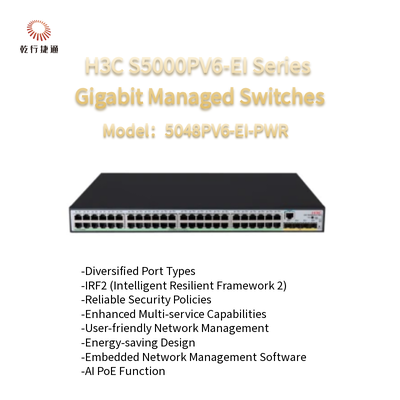

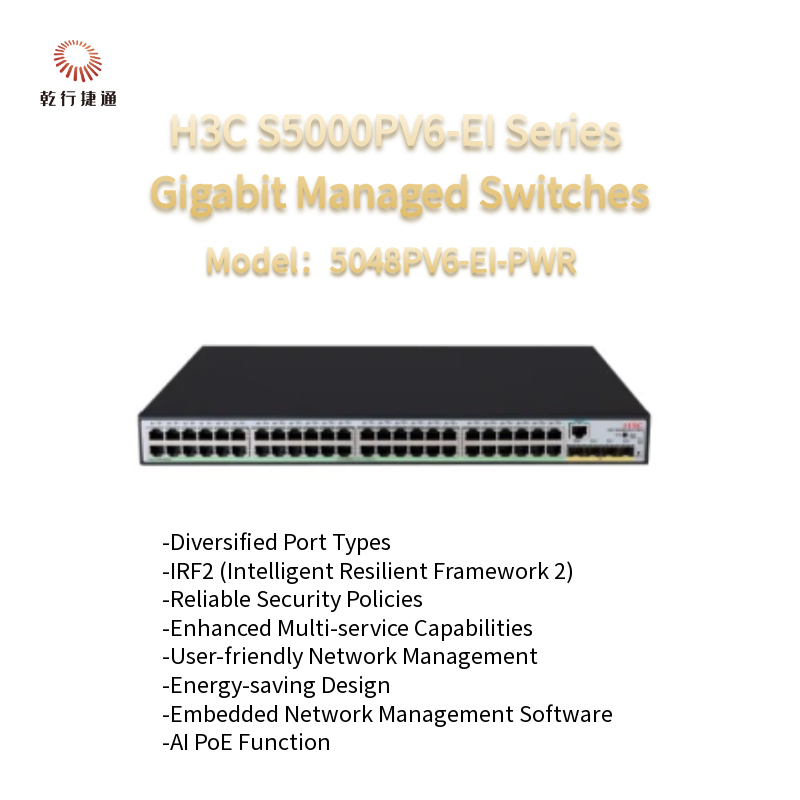

H3C S5000PV6-EI Series S5048PV6-EI-PWR Gigabit Managed Switches

H3C S5000PV6-EI Series S5048PV6-EI-PWR Gigabit Managed Switches
H3C S5000PV6-EI Series S5048PV6-EI-PWR Gigabit Managed Switches

큰 이미지 :  H3C S5000PV6-EI Series S5048PV6-EI-PWR Gigabit Managed Switches

제품 상세 정보:
브랜드 이름: H3C
모델 번호: S5048PV6-EI-PWR
결제 및 배송 조건:
최소 주문 수량: 1
가격: $700-1900
접촉

H3C S5000PV6-EI Series S5048PV6-EI-PWR Gigabit Managed Switches

설명
기인하다: S5048PV6-EI-PWR 패킷 전달 속도: 144Mpps
고정 포트: 48×10/100/1000Base-T 이더넷 포트 이더넷 기능: 포트 집합 지원
IP 라우팅: 정적 라우팅 지원 멀티 캐스트: PIM 스누핑 지원
강조하다:

H3C S5000PV6-EI managed switch

,

Gigabit managed switch with PWR

,

S5048PV6-EI-PWR fibre channel switch


H3C S5000PV6-EI Series Gigabit Managed Switches


Product Overview

The H3C S5000PV6-EI Series Ethernet Switches are a new generation of high-performance full-gigabit managed switches launched by H3C for small and medium-sized commercial markets. They support IRF2 stacking, and deliver comprehensive security access policies as well as easy network management and maintenance. Widely deployed for network construction in government, SMEs, schools, hotels and other industries.

Attribute S5048PV6-EI-PWR
Switching Capacity 596Gbps/5.96Tbps
Packet Forwarding Rate 144Mpps
Management Ports 1 x Console port
Fixed Ports 48×10/100/1000Base-T Ethernet ports;
4×1000Base-X SFP ports
Electrical Port Features Supports half-duplex, full-duplex, and auto-negotiation modes;
Supports MDI/MDI-X
Ethernet Features Supports IRF2 (max. 9 units stacking);
Supports LLDP; Static MAC configuration;
Supports MAC address learning count limit (max. 16K MAC address depth);
Supports port mirroring and flow mirroring;
Supports port aggregation (max. 8 ports per group, up to 24 groups);
Supports port isolation;
Supports STP/RSTP/MSTP;
Supports IEEE 802.3ad (dynamic link aggregation) and static port aggregation
VLAN Supports 802.1Q (max. 4K VLANs);
Supports protocol-based VLAN;
Supports MAC-based VLAN;
Supports GUEST VLAN;
Supports VLAN mapping;
Supports MVRP
IP Routing Supports static routing
DHCP Supports DHCP Relay;
Supports DHCP Client;
Supports DHCP Snooping
Multicast Supports IGMP V1/V2/V3 Snooping;
Supports PIM Snooping;
Supports multicast VLAN;
Supports IPv6 multicast settings
QoS Supports SP/WRR/SP+WRR queue scheduling;
Supports 802.1p, DSCP priority mapping;
Supports port rate limiting



Product Features


Diversified Port Types

  • Equipped with combined Ethernet and optical ports for flexible networking in various scenarios.
  • Offered in 8/16/24/48-port models (PoE/non-PoE). All ports support wire-speed Gigabit forwarding to meet different needs.


IRF2 (Intelligent Resilient Framework 2)

IRF2 virtualizes multiple physical switches into one logical unit for unified use and management.
  • Simplified Management: Access the unified system via any port and configure the entire IRF through a single device.
  • Simplified Services: All protocols run collectively. Cross-device link aggregation replaces STP, cutting protocol interactions and accelerating network convergence.
  • Flexible Scalability: Hot plugging is supported for device addition or removal without service interruption.
  • High Reliability: Link aggregation ensures multi-link redundancy. Automatic Master election delivers 1:N device backup, and real-time protocol backup guarantees 1:N protocol reliability.
  • High Performance: The system’s total capacity and port density equal the sum of all member devices for prominent performance improvement.


Reliable Security Policies

  • ARP intrusion detection defends against ARP spoofing.
  • IP Source Guard blocks address spoofing and DoS attacks.
  • DHCP Snooping prohibits unauthorized DHCP servers.
  • Port security prevents MAC-based attacks and controls traffic by MAC addresses.
  • It supports 802.1X, MAC authentication, client version detection and Guest VLAN. Combined with iMC, it enables proxy and dual-NIC detection.


Enhanced Multi-service Capabilities

  • Port and flow rate limiting enables refined bandwidth management against malicious occupation.
  • SP, WRR and SP+WRR queue scheduling support multi-priority data transmission.
  • Rich IPv6 functions and management tools are available.


User-friendly Network Management

  • CLI, Web and Telnet facilitate daily management, and SSH 2.0 secures access.
  • Remote upgrade via FTP/TFTP is supported. It works with SNMP v1/v2c/v3, iMC and OpenView platforms.
  • A RESET button is provided for device restoration, reconfiguration and troubleshooting.


Energy-saving Design

  • Low power consumption reduces faults and radiation, meeting household appliance radiation standards.
  • The product complies with EU RoHS requirements for environmental and material safety.


*Embedded Network Management Software

It enables unified management of wireless devices, switches and routers, offering free O&M and simplified deployment for small networks. The switches can be managed as nodes for easy maintenance.

AI PoE Function

AI PoE integrates AI technology to realize intelligent PD power supply, power management, alarm logging, PoE security, fast reboot, Perpetual PoE and long-distance PoE transmission.
Besides, PoE Watchdog monitors port status and restarts PoE power automatically to recover faulty links.

Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
