제품 상세 정보:
|
| 모델: | S5570S-28S-HPWR-EI-A | 포트 스위치 능력(BPS): | 128g |
|---|---|---|---|
| 패킷 전달 속도: | 96Mpps | SDRAM: | 1g |
| CPU: | 1GHz, 2코어 | USB 포트: | 1 |
| 강조하다: | H3C S5570S-EI Ethernet switch,S5570S-28S-HPWR-EI-A switch,Fibre Channel Ethernet switch |
||

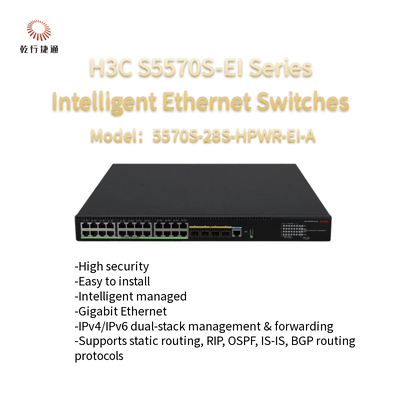

H3C S5570S-EI Series High Performance Intelligent Ethernet Switches
Product Overview
H3C S5570S-EI series switches are a new generation of high-performance, high-port density, high-security and easy-to-install intelligent managed Gigabit Ethernet switches developed by H3C using industry-leading ASIC technology, supporting IPv4/IPv6 dual-stack management and forwarding, supports static routing protocols and routing protocols such as RIP, OSPF, IS-IS, BGP, etc., and supports rich management and security features.
H3C S5570S-EI series switches are mainly positioned at the access layer and aggregation layer of enterprises and campuses, meeting high-density Gigabit access, fixed 10 Gigabit uplink ports, supporting PoE+, and building high-performance end-to-end IP network solutions with other H3C products.
| Model | S5570S-28S-HPWR-EI-A |
| Port switch capacity(bps) | 128G |
| System Switching Capacity(bps) | 598Gbps |
| Packet forwarding rate | 96Mpps |
| Flash | 512M |
| SDRAM | 1G |
| Buffer(byte) | 2M |
| CPU | 1GHz, 2Cores |
| Console port | 1 console port(RJ45) |
| Eth management | / |
| USB Port | 1 |
| Service port description | 24*10 /100/1000Base-T autosensing Ethernet ports, 4*10G SFP+ ports |
| PoE+ | Y |
| Dimensions (W×D×H, unit: mm) | 440×400×43.6 |
| weight | ≤7.5kg |
| Input voltage | • Rated voltage range: 100V ~ 240V AC, 50/60Hz • Maximum voltage range: 90V ~ 290V AC, 47 ~ 63Hz |
| 80 PLUS(80 PLUS Certified) | Y (80 PLUS Platinum) |
| Power consumption (static) | Single AC input: 42 W Dual AC inputs: 50 W Single DC input: 39 W Dual DC inputs: 55 W |
| Power consumption (at full load) | Single: 965W(PoE:840W) Dual: 960W(PoE:840W) |
| Fan | 2 |
| MTBF(Year) | 111.29/55.18(with psu) |
| MTTR(Hour) | 1 |
| Working temperature | -5℃~45℃ |
| Storage temperature | -40 ~ +70℃ |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
