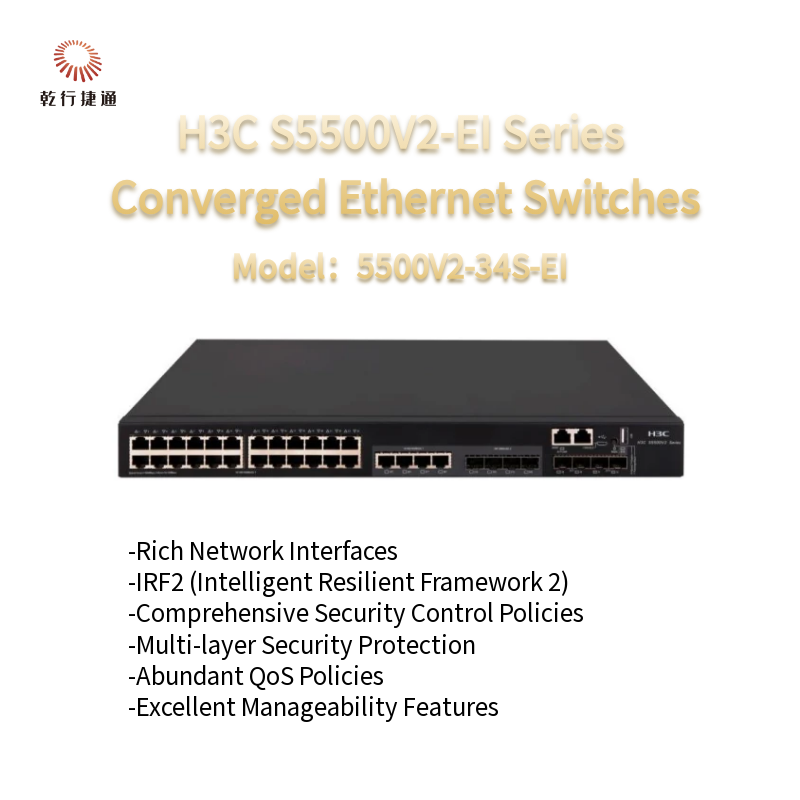

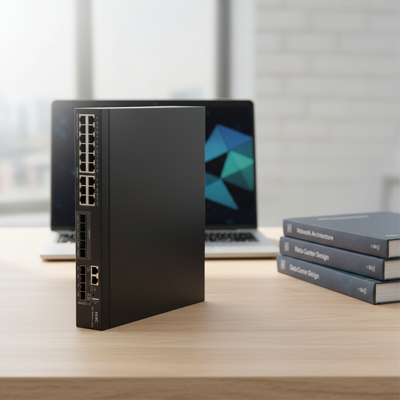

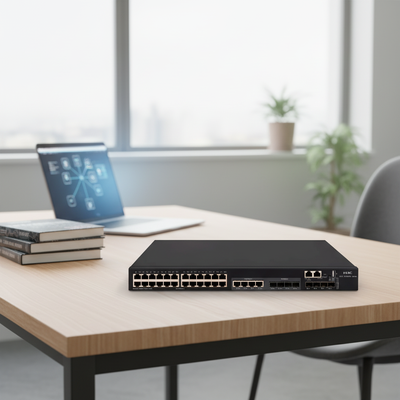

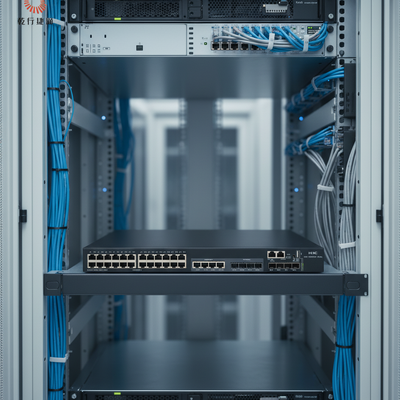

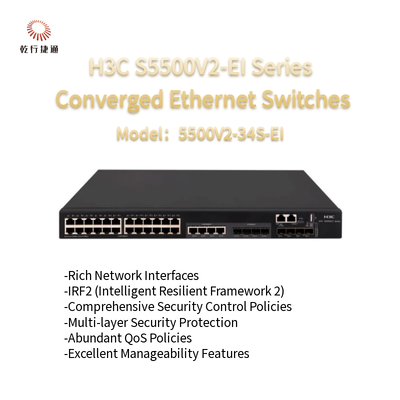

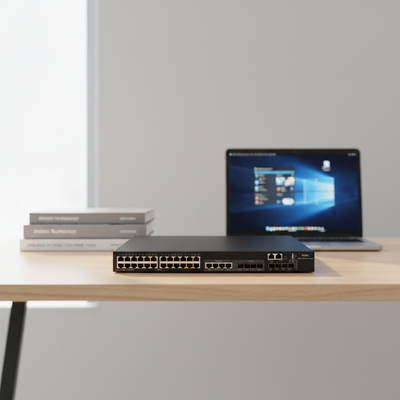

H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches

H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches
H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches

큰 이미지 :  H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches

제품 상세 정보:
브랜드 이름: H3C
모델 번호: S5500V2-34S-EI
결제 및 배송 조건:
최소 주문 수량: 1
가격: $1800-3000 pcs Negotiable
접촉

H3C S5500V2-EI Series S5500V2-34S-EI High-performance Converged Ethernet Switches

설명
지원되는 기능: S5500V2-34S-EI 전송률: 228Mpps
무게: <3.5kg 관리 직렬 포트: 미니 USB 콘솔, USB
확장 슬릇: 아니요 포트 집합: GE 포트 집합 지원
강조하다:

H3C S5500V2-EI Ethernet switch

,

high-performance converged switch

,

Fibre Channel Switch with warranty


H3C S5500V2-EI Series High-performance Converged Ethernet Switches


Developed independently by H3C on advanced hardware architecture and Commware V7 OS, the S5500V2-EI is a Layer 3 manageable Gigabit switch with high performance and high port density. It features hardware-based IPv4/IPv6 dual-stack wire-speed forwarding for smooth IPv6 migration.

Available with 10/100/1000BASE-T copper and 10GE SFP+ ports, it expands to 10GE SFP+ and 40GE QSFP+ via optional daughter cards. Deployable as desktop access switches or small enterprise core devices, it aggregates downstream access switches and uplinks to core via 10G/40G fiber or link aggregation for carrier and industry networks. Comprehensive management functions simplify equipment deployment and daily O&M.

Supported Features S5500V2-34S-EI
Switching Capacity 1.13Tbps/11.3Tbps
Forwarding Rate 228Mpps
Dimensions (W × D × H)
(Unit: mm)		 440×260×43.6
Weight <3.5kg
Management Port Console Port
Management Serial Port mini USB console, USB
Front Panel Service Port Description 28 × 10/100/1000TX Ethernet ports (including 4 Combo ports)
2 × SFP Gigabit ports + 2 × 1/10G BASE-X SFP PLUS 10G ports
 2 × QSFP PLUS 40G ports
Expansion Slot NO
Expansion Module Not expandable
Port Aggregation

Support GE port aggregation

Support 10GE port aggregation

Support 40G aggregation

Support static aggregation

Support dynamic aggregation

Support cross-device aggregation

Support 8-port link aggregation
Port Features

Support IEEE802.3x flow control (full duplex)
Support multicast storm suppression

Support broadcast storm suppression

Support storm suppression based on port rate percentage

Support PPS-based storm suppression

Support bps-based storm suppression
Jumbo Frame Support maximum frame length of 10000
MAC Address Table

Support black hole MAC address

Support static and dynamic MAC
Support MAC address auto-learning and aging
Support setting maximum number of MAC address learning per port
VLAN Support port-based VLAN
Support MAC-based VLAN
Protocol-based VLANIP
subnet-based VLANSupport QinQ,
flexible QinQ*Support VLAN
MappingSupport Voice VLAN
Support SuperVLAN


Product Features


Rich Network Interfaces

S5500V2-EI comes with fixed 10GE and mixed Gigabit copper/fixed SFP ports to build non-blocking networks cost-effectively. Optional expansion slots accept various daughter cards including 40GE QSFP+, 10GE SFP+ and combo GE modules for flexible port scaling, protecting investment and cutting upgrade cost for core or aggregation deployment.

IRF2 (Intelligent Resilient Framework 2)

IRF2 virtualizes multiple physical switches into one logical device for unified administration:
  • Simplified management: Configure the whole stack via any single access port.
  • Optimized forwarding: Cross-device link aggregation replaces STP and shortens network convergence.
  • Hot-swappable expansion: New units join the stack without service outage.
  • Multi-layer redundancy: 1:N master backup for chassis, link aggregation for link reliability and real-time protocol backup.
  • Improved capacity: Total switching performance equals the aggregate capability of all stacked switches.


Comprehensive Security Control

Compatible with EAD and iMC system to integrate endpoint antivirus, patch management and access control into proactive full-network defense. It supports MAC/802.1X/Portal authentication plus binding of user account, IP, MAC, VLAN and port with dynamic policy delivery. Advanced VLAN-based ACL and uRPF defend against source IP spoofing; port isolation and secure MAC learning prevent intra-VLAN virus spread and unauthorized terminal access.

Multi-layer Security & Reliability

Hardware design includes hot-swappable AC/DC dual power supplies and redundant fans with temperature-based speed adjustment and fault alert. Rich link protection covers LACP, STP/RSTP/MSTP, Smart Link and RRPP; IRF2 1:N backup, ring stacking and cross-box link aggregation guarantee stable operation under heavy multi-service traffic.

Abundant QoS Policies

L2~L4 traffic classification based on MAC, IP, TCP/UDP port, protocol and VLAN; SP/WRR/SP+WRR queue scheduling and bidirectional port mirroring for traffic monitoring and troubleshooting.

Excellent Manageability

Equipped with Console, Micro USB and out-of-band Ethernet port; compliant with SNMPv1/v2/v3, iMC & OpenView. Administration options include CLI, Telnet, Web and SSH2.0 encryption. SPAN/RSPAN multi-port mirroring enables full traffic analysis to facilitate network optimization.

Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
